3" Shell Type Borewell Submersible Pumps, TRT Shell Type Borewell Submersible Pump, Box Type Borewell Submersible Pumps, Mumbai, India

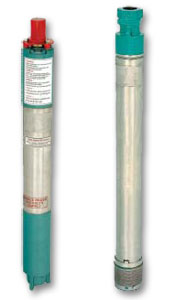

3” Shell Type Borewell Submersibles Pumps - (TRT)

Product Features

	Light weight and easy to install
	Improved hydraulic design with increased efficiency and reduced power consumption
	Noise free operations.
	Modular construction and easily interchangeable parts
	Available in radial flow impeller design in shell type assembly
	Impellers and diffusers of high quality engineering polymer
	Impellers and diffusers of high quality engineering polymer
	Stainless steel pump shell for corrosion resistance and LTB bushes
	for high wear resistance and longer life
	Built in NRV with minimum friction
	Easily rewindable Squirrel-cage motor of water-cooled, designed for 200 – 240 V, 50 Hz, AC power supply
	High quality water-resistant polymer insulated wires for longer life even under adverse voltage conditions
	Pressure diaphragm to compensate excess pressure due to heating up of filled water

Material Of Construction

Part Name	Material	Part Name	Material
Impeller	Noryl	Motor body	AISI 304
Diffuser /	Noryl	Bearing housing	CI - FG 200
Diffuser housing
Pump shaft	AISI 410	Motor shaft	AISI 410
Pump shell	AISI 304	Journal bush	LTB-4
Bearing bush	NBR	Thrust bearing	AISI 410 - Carbon
Non return valve	AISI 304 / NBR	Winding wire	Polywrapped copper

Applications

» Domestic water supply
» Water supply to high rise buildings, housing complexes, bungalows and industries
» Cattle and poultry farms
» Dairies
» Fountains
» Unshaped & crooked 4” Borewell
