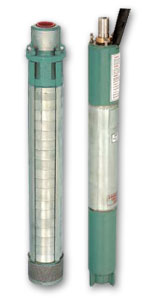

4” Box type Borewell Submersibles Pumps - TBRF

4” Box type Borewell Submersibles Pumps Box type Borewell Submersibles

Product Features
rokade pumps Light weight and easy to install
rokade pumps Improved hydraulic design with increased efficiency and reduced power consumption.
rokade pumps Noise free operation
rokade pumps Modular construction and easily interchangeable parts
rokade pumps Radial flow impeller design in SS box type assembly
rokade pumps Impellers and diffusers of high quality engineering polymer
rokade pumps Stainless steel housings for corrosion resistance and LTB bushes for high wear resistance and longer life Built in NRV with minimum friction
rokade pumps Easily rewindable Squirrel-cage motor of watercooled, designed for 200 – 240 V / 350 – 440 V, 50 Hz, AC power supply.
rokade pumps High quality water-resistant polymer insulated wires for longer life even under adverse voltage conditions.
rokade pumps Pressure diaphragm to compensate excess pressure due to heating up of winding and filled water.

Material Of Construction
Part Name Material Part Name Material
Impeller Noryl Motor body AISI 304
Diffuser Noryl Bearing housing CI - FG 200
Diffuser housing AISI 304 Motor shaft AISI 410 / 431
Pump shaft AISI 410 / 431 Journal bush LTB-4
Bearing bush NBR Thrust bearing AISI 420 - Carbon
Non return valve AISI 304 / NBR Winding wire Polywrapped copper

Applications
» Domestic and community water supply
» Water supply to high rise buildings, housing complexes, bungalows and Industries
» Irrigation of farms
» Cattle and poultry farms
» Dairies
» Cooling water circulating systems
» Fire fighting systems
» Fountains.
