Multi Stage High Pressure Pumps

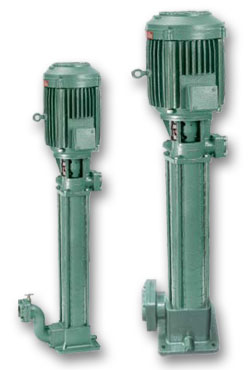

Multi Stage Vertical Pressure Pumps - (MRS / MRE)
Product Features
Designed to operate at low voltage conditions.
Easy to install and require very simple maintenance.
Sturdy and reliable.
Silent operation and steady flow of water.
Separate pump house is not required. The pumpset can be installed near the water source.
Easily accessible for servicing and overhauling.
Dynamic balancing of rotors and impellers ensure vibration free performance and long bearing life.
Stainless steel graded pump shaft.
Gunmetal diffusers and LTB-2 graded impellers.
Squirrel cage motor of TEFC type designed to operate in wide range of voltage variation
350 - 440 V, 50Hz, AC power supply.
Material Of Construction
Part Name
Material
Part Name
Material
Impeller
LTB-2
Motor body
CI GR 180
Diffuser
Gunmetal
Coupling
AISI 410
Pump shaft
AISI 410
Motor shaft
45C8 / 55C8
Sleeve
AISI 410
Bearing
Alloy steel
Bearing bush
NBR / LTB-4
Winding wire
Enameled copper
Applications
»
Water supply to high rise buildings
»
Hotels, tea estates & sprinkler applications.
