Sumbersible Sewage Pumps |
| Our Various Models Of Sewage Pumps Are : Model RPS 1.5 / RPS 1.5 S / RPS 02 / RPS 03 / RPS 05 / RPS 7.5 /
RPS 10 / RPS 15 / RPS 20 / RPS 25 |
| |
| |
| |
Special features : |
| • |
ROKADE Sewage Pumps can handle large quantities of solids thereby achieve
dewatering as well as desilting.
|
| • |
The pumps are equipped with squirrel cage induction motor of continuous rating having ‘F’ class insulation with bi-metallic switches embedded in stator winding to protect
against overheating. |
| • |
Level Control Switches are supplied with the pump for automatic control of liquid level. |
| |
Applications Of Sewage Pumps |
|
 |
|
|

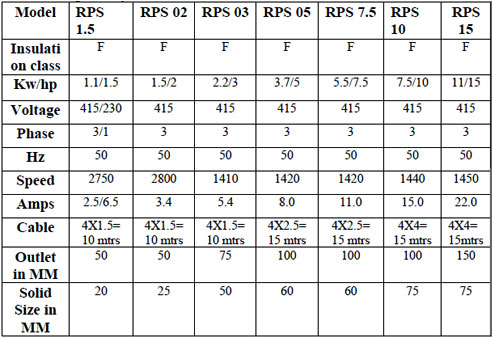

| Range & Specifications |
 |
| |
| Head and Discharge |
| Pump range |
Head in Mtrs |
Discharge in LPM |
| RPS 1.5 |
0-15 |
350-100 |
| RPS 02 |
4-10 |
500-250 |
| RPS 03 |
8-16 |
850-400 |
| RPS 05 |
6-12 |
2200-900 |
| RPS 7.5 |
7-14 |
2350-1050 |
| RPS 10 |
9-18 |
2500-1500 |
| RPS 15 |
10-17 |
3000-1400 |
| RPS 20 |
12-22 |
4000-2000 |
| RPS 25 |
15-25 |
4500-2300 |
|
| |
| Materials of construction |
| Part name |
Material |
| Pump Body |
Extruded Aluminium alloy for 1.5 hp
to 3 hp and C.I. for 5 hp to 25 hp |
| Top Bracket |
C.I |
| Lower bracket |
C.I |
| Rotor |
Aluminium die cast (LM4) |
| Rotor shaft |
SS 431 |
| Mechanical
seal |
Tungsten carbide vs tungsten carbide |
| Impeller |
SS 410 |
| Cable |
PVC double sheath insulated copper
conducted cable, water proof and oil
proof also available in TPR. |
|
