Single phase Vertical Jet Monoblock Pumps - HCSJ / TSJ

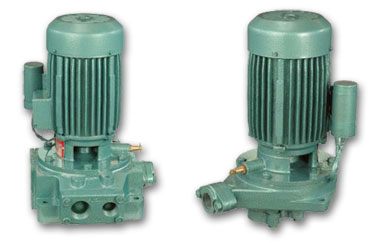

Single phase Vertical Jet Monoblocks
Product Features
Designed to operate at very low voltage.
Easy installation and simple maintenance.
Can be installed near the borewell or offset in an adjacent building without separate pump house.
Silent operation and steady flow of water.
Pressure valve for easy adjustment of pump output matching with the borewell yield.
Choice of different jet units for varying depths and discharges.
Easily accessible for servicing and overhaul.
Dynamic balancing of rotor and impellers ensures vibration free performance and longer bearing life.
Squirrel-cage motor of TEFC type designed to operate in a wide range of voltage variation 180-240 V, 50 Hz, AC power supply.

Material Of Construction
Part Name Material Part Name Material
Impeller AISI 304 / CI FG 200 / Gunmetal Mechanical seal Carbon - Ceramic
Casing CI GR 180 Motor body CI GR 180
Sleeve AISI 410 (1.5 hp) Shaft 45C8 / AISI 410
Flanges CI GR 180 Winding wire Enameled copper

Applications
» Pumping water from deep borewell for water supply to houses
» Residential Colonies
» Factories
» Multistoried buildings and apartments
